The Most Resilient Analog VoIP Gateways in Their Class

The Analog Vega VoIP gateways are small appliances that seamlessly connect your legacy telephony infrastructure, made up of analog phone lines, to IP networks. This is great for businesses with legacy phone equipment (such as an analog PBX) who want to connect to SIP trunking services without having to spend money altering their network infrastructure. They are also great for businesses that are already VoIP enabled at the core (with an IP-PBX) that need PSTN connectivity for emergency fallback. Simply place the Vega VoIP Gateway at the edge of your network, plug in your existing internet cable for VoIP connectivity and analog cables from your phone system and let the Vega automatically handle the SIP signalling and voice media conversion for seamless voice and T.38 Fax integration.

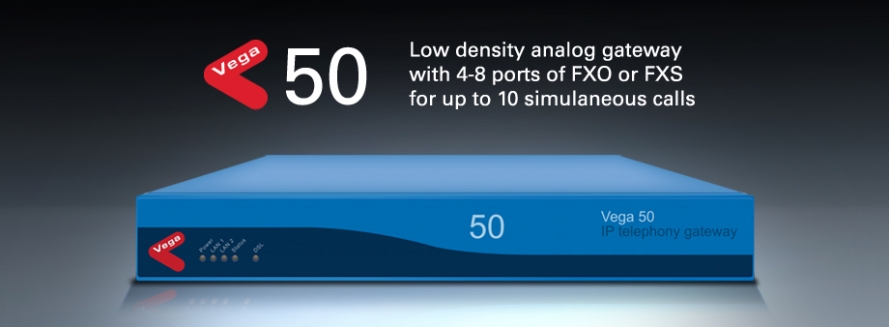

Vega 50 FXS

Sangoma’s Vega 50 FXS VoIP Gateway is a 4-8 port analog FXS appliance supporting up to 10 simultaneous calls

  • Supports SIP, T.38 fax and modems
  • WebGUI for configuration and troubleshooting, featuring Quick Wizard for rapid deployment
  • 2 FXO ports for normal PSTN calling or dedicated for fallback
  • Onboard DSP for media translation
  • Interoperable with most legacy and VoIP carriers worldwide
  • Advanced flexible call routing with automatic failover and bypass routing

Vega 50 FXO

Sangoma’s Vega 50 FXO VoIP Gateway is a 4-8 port analog FXO appliance supporting up to 8 simultaneous calls

  • Supports SIP, T.38 fax and modems
  • WebGUI for configuration and troubleshooting, featuring Quick Wizard for rapid deployment
  • Onboard DSP for media translation
  • Interoperable with most legacy and VoIP carriers worldwide
  • Advanced flexible call routing with automatic failover and bypass routing
  • Local survivabiity of IP phones upon WAN failure

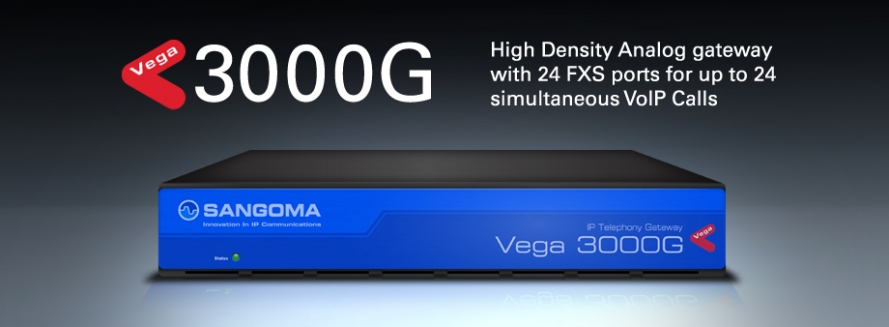

Vega 3000G

Sangoma’s Vega 3000G VoIP Gateway is a 24 FXS analog appliance supporting up to 24 simultaneous calls



  • Supports SIP, T.38 fax and modems
  • WebGUI for configuration and troubleshooting, featuring Quick Wizard for rapid deployment
  • Onboard DSP for media translation
  • Interoperable with most legacy and VoIP carriers worldwide
  • Advanced flexible call routing with automatic failover and bypass routing
  • 8 km loop length, great for muti-dwelling applications

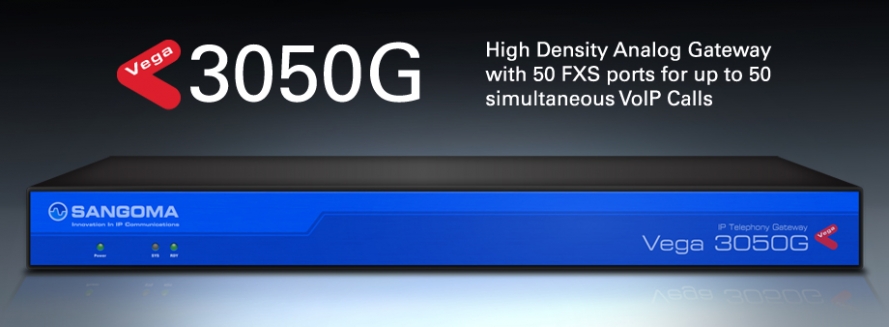

Vega 3050G

Sangoma’s Vega 3050G VoIP Gateway is a 50 FXS appliance supporting up to 50 simultaneous calls.


  • Supports SIP, T.38 fax and modems
  • WebGUI for configuration and troubleshooting, featuring Quick Wizard for rapid deployment
  • Onboard DSP for media translation
  • Interoperable with most legacy and VoIP carriers worldwide
  • Advanced flexible call routing with automatic failover and bypass routing
  • Optional expansion board for up to 2 FXO ports for emergency PSTN connectivity

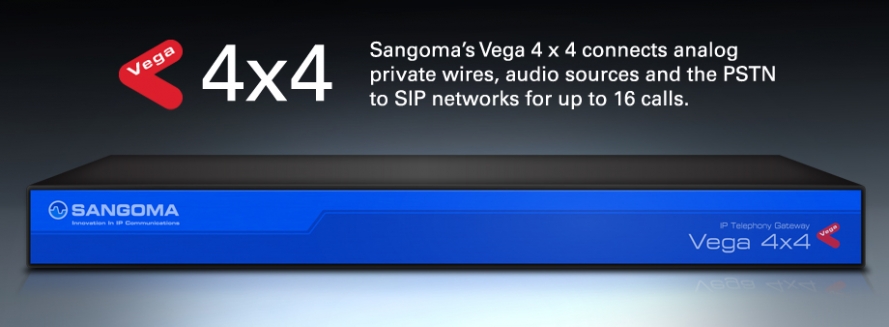

Vega 4x4

Sangoma’s Vega 4 x 4 connects analog private wires, audio sources and the PSTN to SIP networks for up to 16 calls.

  • Supports four analog interfaces: Audio, GenGen, FXO, FXS
  • Web GUI for configuration and troubleshooting
  • Supports SIP, T.38 fax and modems
  • Supports up to 16 analog ports on 16 physical interfaces
  • Ideal for private wire or point-to-point application
  • Chassis designed to be built out by systems integrator or OEM to individual requirements

Request Quotation

Why Sangoma Analog Gateways?

Advanced Web GUI

Features an intuitive Quick Wizard which does all the hard work for you for new deployments. Flexible dialplan to allow you to make your own routes, including automatic failure detection with failover routing

Low and High Density Models

Our low density analog models called Vega 50 offered with 2-10 ports of FXS and FXO combinations. Our High Density Vega 3000G and Vega 3050G offer 24 and 50 FXS ports, respectively.

Built-in Local Survivability

In the event of a WAN failure, IP phones behind the Vega VoIP gateway can continue to call each other, be routed to a backup switch or connected directly to the PSTN.

Diagnostic Tools

Web GUI based PCAP tracing tool to capture full signaling and media, eliminating the need to connect equipment for line tracing, fully compatible with wireshark.

Long Line Length

Connect your analog lines up to 8 kms from the Vega Gateway. Great for applications where the IT closet is located far away from the analog devices

Qualified for Microsoft

Qualified for Lync 2013 and Skype for Business 2015.
